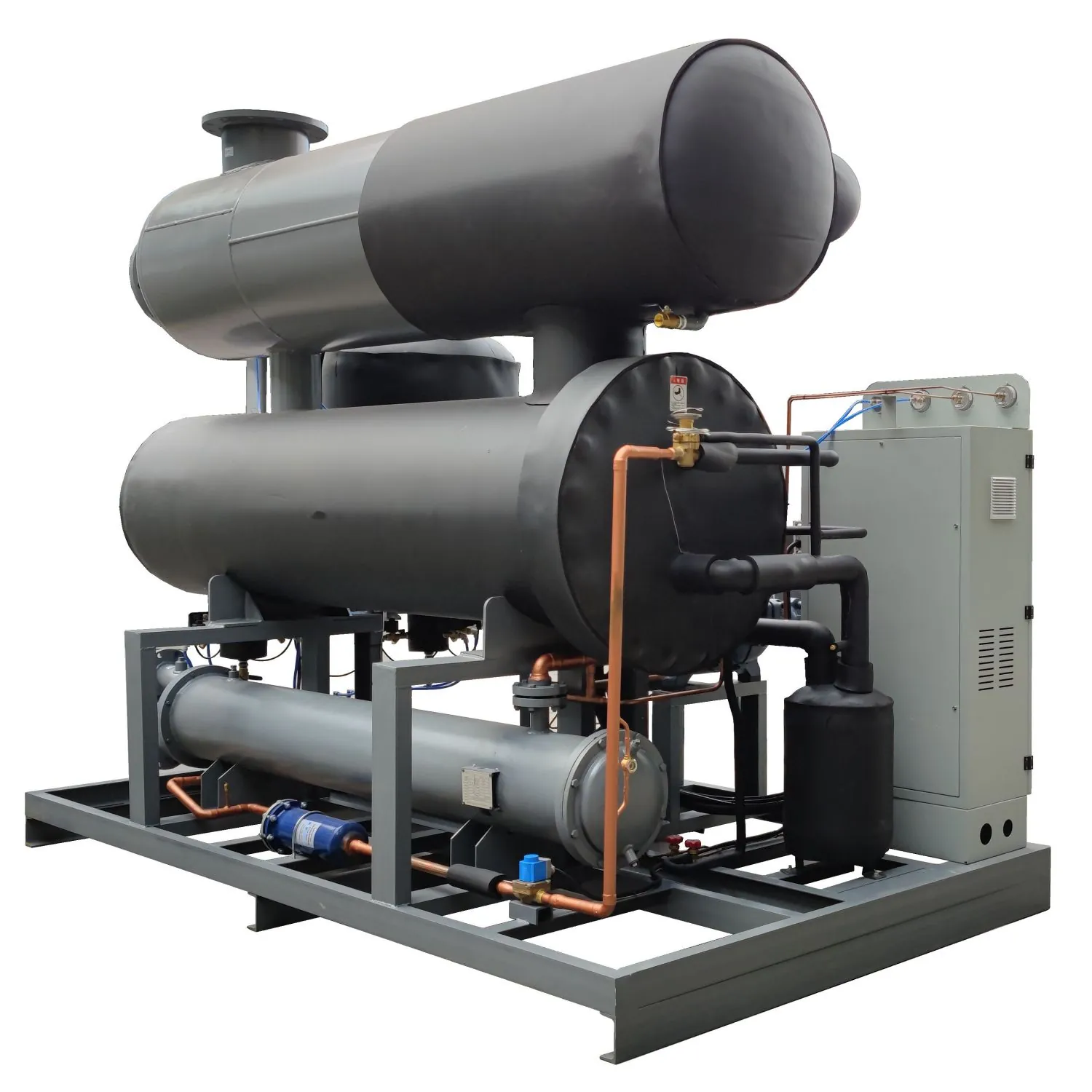

Máy sấy khí lạnh nhiệt độ cao 250 m³ (làm mát bằng nước)

Key Features

• ✅ Massive Air Flow Capacity: Rated at 8830 CFM, ideal for central compressed air systems and continuous high-load operations.

• ✅ Water Cooled Efficiency: Delivers consistent cooling performance even in hot climates or enclosed plant environments.

• ✅ Stable Pressure Dew Point: Maintains 2–10°C (35.6–50°F), protecting downstream equipment from corrosion and failure.

• ✅ Heavy-Duty Build: Equipped with high-efficiency scroll or semi-hermetic compressors and oversized heat exchangers.

• ✅ Digital Control Panel: Real-time temperature monitoring, alarm indicators, and automatic diagnostics.

• ✅ Automatic Drain System: Efficiently removes condensate without manual interference.

• ✅ Industrial Durability: Built with reinforced steel housing, corrosion-resistant treatment, and IP-rated electrical components.

The 8830 CFM refrigerated air dryer (water cooled) is the ultimate solution for businesses requiring superior moisture control at high air volumes.

Operating Conditions & Technical Requirements

• Inlet Air Pressure: 4 – 10 bar (58 – 145 psi)

• Inlet Air Temperature: ≤ 45°C (113°F)

• Ambient Temperature: 5 – 45°C (41 – 113°F)

• Cooling Water Inlet Temperature: ≤ 32°C (89.6°F)

• Cooling Water Flow Rate: 600 – 750 L/min

• Power Supply: 380V / 3Ph / 50Hz (customizable if needed)

• Installation Environment: Indoor, well-ventilated, dust-free area

• Recommended Filtration: Use with pre-filters and after-filters for optimal dryer and system performance

Technical Specifications

The 8830 CFM refrigerated air dryer (water cooled) is engineered for high-flow, high-performance, and long-lasting operation in mission-critical air systems.

Application Scenarios

The 8830 CFM refrigerated air dryer (water cooled) is ideal for the following sectors:

• 🏭 Steel & Heavy Industry – Reliable moisture removal in CNC, plasma cutting, welding, and forging applications

• 🧪 Pharmaceutical Plants – Ensure precise air quality for production, packaging, and lab processes

• 🧼 Textile & Plastics Production – Prevent defects in material processing caused by air humidity

• 🚚 Centralized Compressor Stations – Handle entire plant-wide compressed air demands

• 🛢️ Petrochemical & Refining – Maintain dry air for control valves, instruments, and explosion-proof systems

• 🍔 Food & Beverage – Comply with hygiene standards for clean, moisture-free air supply

FAQ – 8830 CFM Refrigerated Air Dryer (Water Cooled)

Q1: What is the function of the 8830 CFM refrigerated air dryer (water cooled)?
A: The 8830 CFM refrigerated air dryer (water cooled) removes excess water vapor from compressed air systems, preventing moisture damage, reducing corrosion, and improving overall system efficiency.

Q2: Why choose a water-cooled model?
A: A water-cooled model like the 8830 CFM refrigerated air dryer provides better heat exchange, quieter operation, and higher energy efficiency, especially in high-temperature or closed industrial environments.

Q3: Is this dryer suitable for 24/7 operation?
A: Yes. The 8830 CFM refrigerated air dryer (water cooled) is engineered for continuous duty with robust internal components and automated control systems.

Q4: What maintenance does the 8830 CFM refrigerated air dryer require?
A: Basic maintenance includes checking filter elements, monitoring drain valve function, and inspecting cooling water inlet/outlet conditions. Its advanced controller minimizes unplanned downtime.

Q5: Can it be customized for special projects?
A: Absolutely. The 8830 CFM refrigerated air dryer (water cooled) can be customized for voltage, refrigerant, air connection type, water pressure compatibility, and more.

Why Choose Our 8830 CFM Refrigerated Air Dryer (Water Cooled)?

• 🌍 International Standards: CE, ISO certified; globally proven design

• 🔧 Custom Engineering: OEM & ODM service for special project needs

• 📦 Fast Delivery & Installation Support: Standard lead times with technical assistance

• 🧠 Smart Control: Intelligent system diagnostics and error detection

• 💼 Full Lifecycle Support: From quotation to maintenance consultation, we’re with you

Request a Quote for 8830 CFM Refrigerated Air Dryer (Water Cooled)

Looking for a heavy-duty moisture removal solution for high-volume compressed air systems? Choose the 8830 CFM refrigerated air dryer (water cooled) for reliable, energy-efficient, and continuous drying performance. Contact our technical team today to get a custom quote or datasheet.
